Stock#:	63431

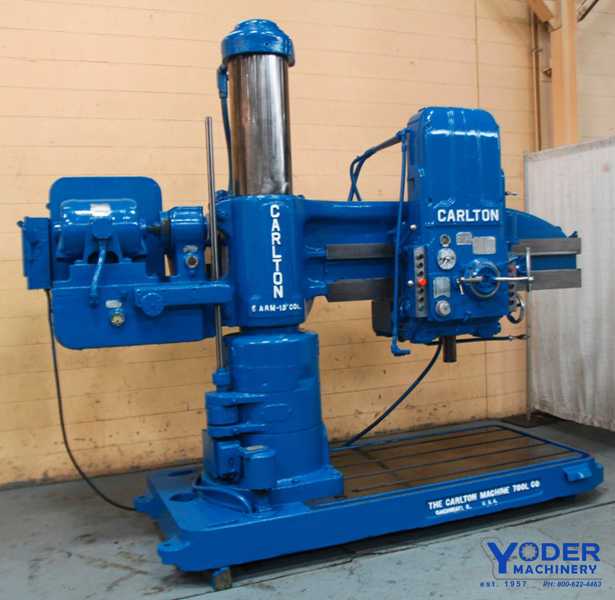

Title:	5' X 13' CARLTON RADIAL DRILL: STOCK# 63431
Brand:	CARLTON
SERIAL	3A-4776
MODEL	3A

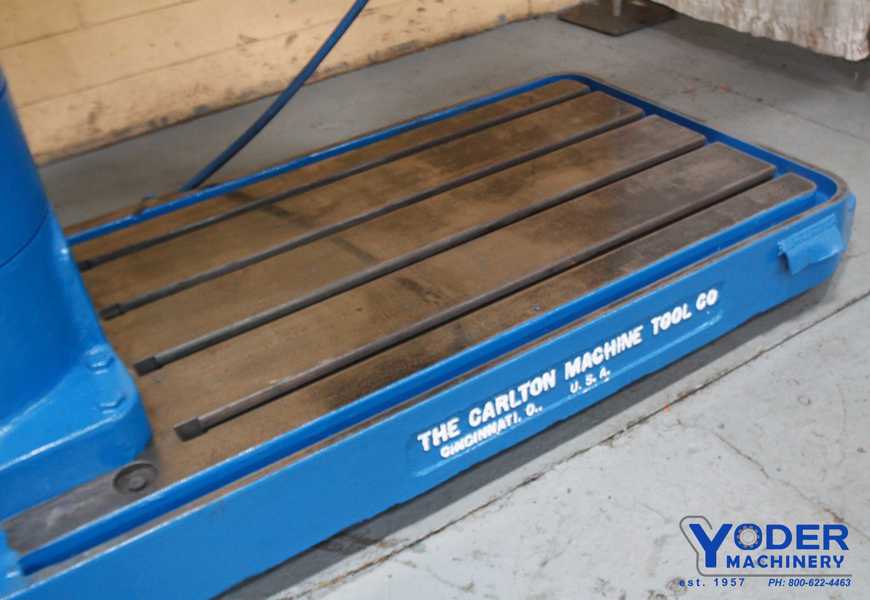

AREA OF BASE	65" X 42"
SPINDLE SPEEDS	(36) 12 TO 1200 RPM
FEEDS	(18) .004 TO .125 IPR
TAP LEADS	8 - 11-1/2 - 14 - 18 TPI
SPINDLE STROKE	18"
SPINDLE DIAMETER	3-3/16"
SPINDLE TAPER	#5 MT
SPINDLE CENTER TO COLUMN	15" MIN, 60" MAX.
SPINDLE NOSE TO BASE	10-1/2" MIN, 60" MAX.
POWER ELEVATION	YES
POWER HEAD TRAVERSE	YES
POWER COLUMN CLAMP	YES
HEAD CLAMP	MANUAL

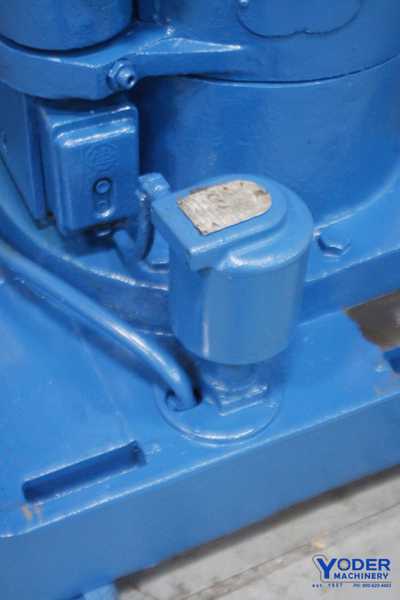

COOLANT	YES

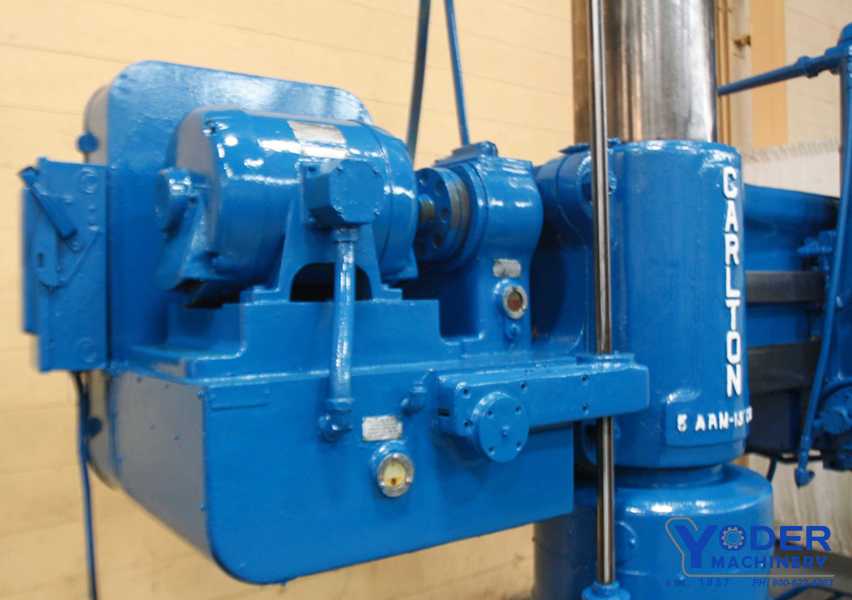

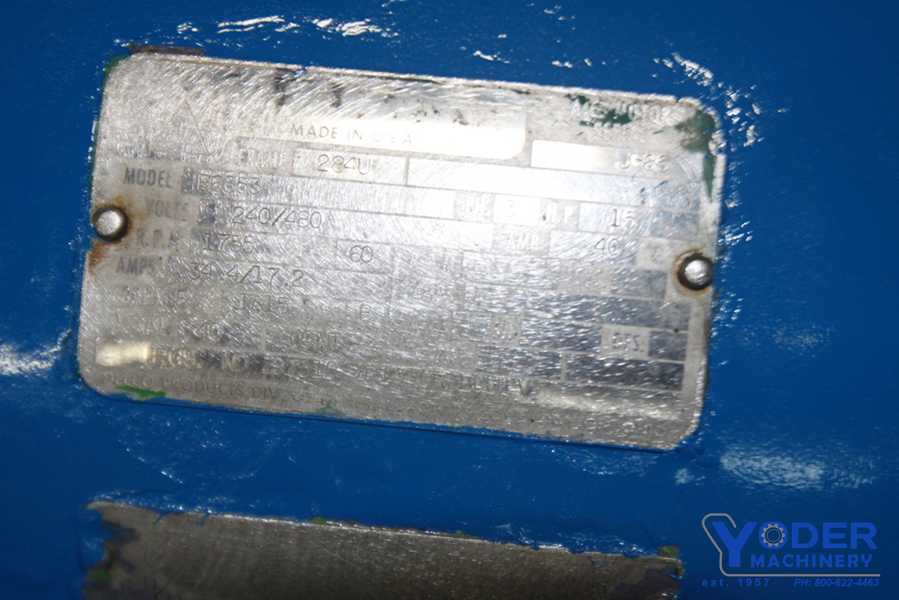

SPINDLE MOTOR	15 HORSEPOWER

<div class="ExternalClass53229517228F4F3DBCA2AE0DD3257F01"><span style="font-family&#58;'Courier New';">SERIAL ........................... 3A-4776<br> MODEL ............................ 3A<br> AREA OF BASE ..................... 65&quot; X 42&quot;<br> SPINDLE SPEEDS ................... (36) 12 TO 1200 RPM<br> FEEDS ............................ (18) .004 TO .125 IPR<br> TAP LEADS ........................ 8 - 11-1/2 - 14 - 18 TPI<br> SPINDLE STROKE ................... 18&quot;<br> SPINDLE DIAMETER ................. 3-3/16&quot;<br> SPINDLE TAPER .................... #5 MT<br> SPINDLE CENTER TO COLUMN ......... 15&quot; MIN, 60&quot; MAX.<br> SPINDLE NOSE TO BASE ............. 10-1/2&quot; MIN, 60&quot; MAX.<br> POWER ELEVATION .................. YES<br> POWER HEAD TRAVERSE .............. YES<br> POWER COLUMN CLAMP ............... YES<br> HEAD CLAMP ....................... MANUAL<br> COOLANT .......................... YES<br> SPINDLE MOTOR .................... 15 HORSEPOWER</span></div>

5' X 13' CARLTON RADIAL DRILL: STOCK# 63431
