| Stock#: | 68977 |

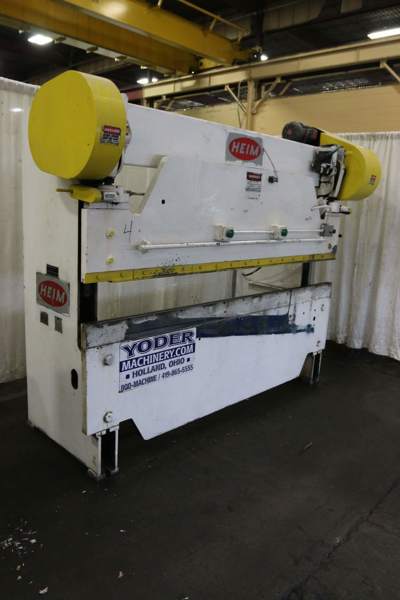

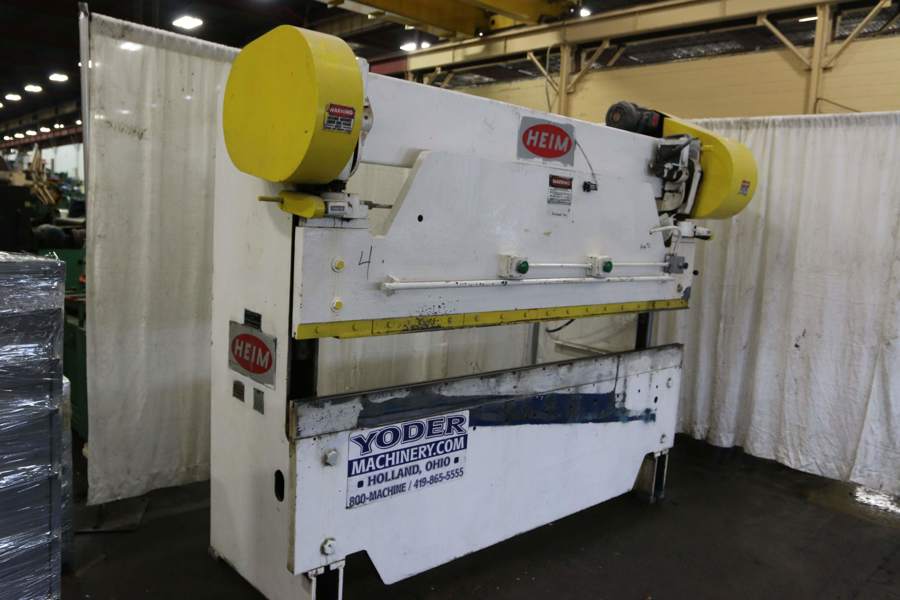

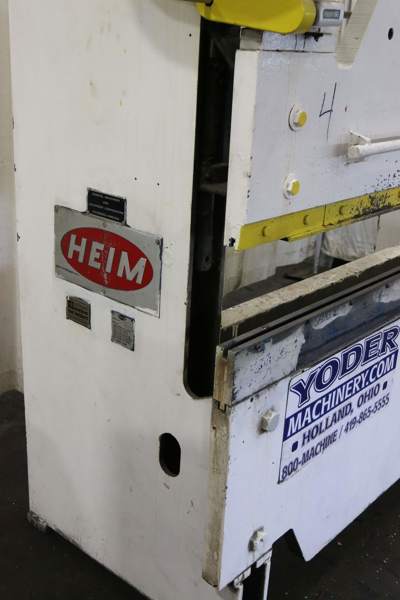

| Title: | 45 TON X 8' HEIM PRESS BRAKE: STOCK #68977 |
| Brand: | HEIM |
<div class="ExternalClass7867D6AE284645ACB52C51AB189AD4D2"><span style="font-family:'Courier New';">SERIAL ................................. 2853<br>
MODEL .................................. 45-8<br>
CAPACITY AT BOTTOM ..................... 45 TON<br>
CAPACITY MID STROKE .................... 30 TON<br>
OVERALL LENGTH OF BED .................. 96<br>
DISTANCE BETWEEN HOUSINGS .............. 78"<br>
STROKE ................................. 2"<br>
SHUT HEIGHT ............................ 12"<br>
POWER RAM ADJUSTMENT ................... 2-1/2"<br>
AIR CLUTCH ............................. YES<br>
THROAT ................................. 7"<br>
STROKES PER MINUTE ..................... 40<br>
AIR DISC BRAKE ......................... YES<br>
DUAL PALM BUTTONS ...................... YES<br>
DOUBLE END DRIVE ....................... YES<br>
FORWARD & REVERSING .................... YES<br>
MOTOR .................................. 5 HORSEPOWER</span></div>
45 TON X 8' HEIM PRESS BRAKE: STOCK #68977
