| Stock#: | 70994 |

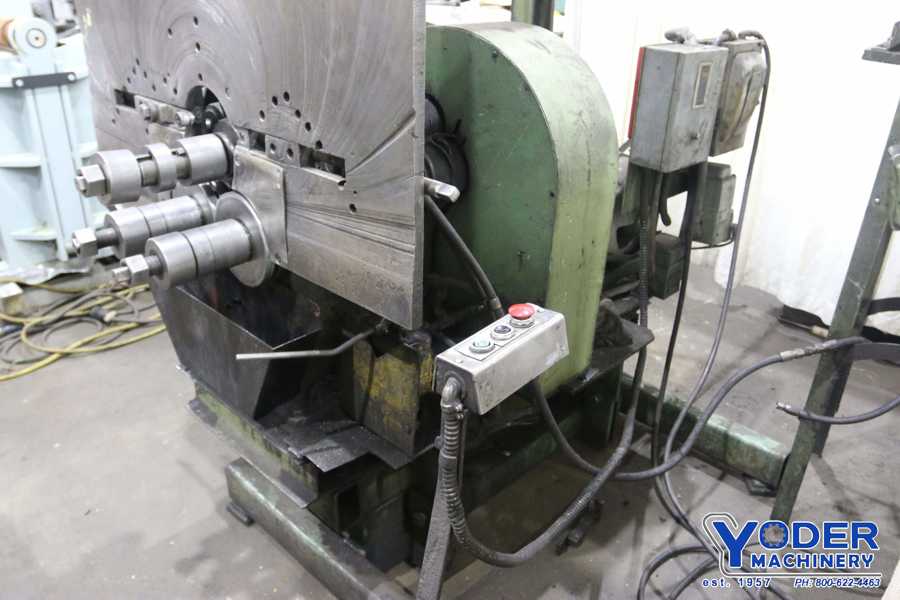

| Title: | 2" X 2" X 1/4" BUFFALO MODEL #1/2 ANGLE BENDING ROLL: STOCK #70994 |
| Brand: | BUFFALO |
<div class="ExternalClass07D15AAA84E04A7BB00B7CA0B060AF69"><span style="font-family:"courier new";">SERIAL ........................ 42W7423<br>
MODEL ......................... 1/2<br>
CAPACITY ANGLE LEG OUT ........ 2" X 2" X 1/4"<br>
MINIMUM DIAMETER .............. 20"<br>
CAPACITY ANGLE LEG IN ......... 1-1/2" X 1-1/2" X 1/4"<br>
MINIMUM DIAMETER .............. 18"<br>
BEAMS ON FLANGE ............... 3" X 7-1/2" TO 24" MIN DIAMETER<br>
FLATS ON EDGE ................. 2" X 3/8"  TO 24" MIN DIAMETER<br>
FLATS ON FLAT ................. 3" X 3/4" TO 20" MIN DIAMETER<br>
ROUNDS ........................ 1-1/2" TO 20" MIN DIAMETER<br>
SQUARES ....................... 1-1/4" TO 20" MIN DIAMETER<br>
ROLL SPEED .................... 1018 RPM MAXIMUM<br>
FEET PER MINUTE ............... 33 (VARIABLE)<br>
MOTOR ......................... 5 HORSEPOWER</span></div>
2" X 2" X 1/4" BUFFALO MODEL #1/2 ANGLE BENDING ROLL: STOCK #70994
